This machine is good for flat surface printing and labeling. According to the scanned information, the database matches the corresponding content and sends it to the printer.
Machine description:
This machine is good for flat surface printing and labeling. According to the scanned information, the database matches the corresponding content and sends it to the printer. At the same time, the label is printed after receiving the execution instruction sent by the labeling system, and the labeling head sucks and printing. For a good label, the object sensor detects the signal and executes the labeling action. High-precision labeling highlights the excellent quality of products and enhances competitiveness.
It is widely used in packaging, food, toys, daily chemical, electronics, medicine and other industries.
More options:
This machine is suitable for products that require large output, with high labeling accuracy of ±0.1mm, fast speed and good quality, and it is difficult to see the error with the naked eye.
Machine covers an area of about 2.38 cubic meters
Support custom labeling machine according to the product.
Labeling Process：Put products in the feeding device→ The products are separated one by one → The products are transmitted by the conveyor belt → The product sensor detects the product→The PLC receives the product signal and sends it to the printing system to print the label→ PLC receives the product signal and start labeling→ the conveyor belt send the labeled products to the collecting plate.
Label production requirements
Technical parameters:
| Parameter | Date |
| Label Specification | Adhesive sticker, transparent or opaque |
| Labeling Tolerance | ±1mm |
| Capacity(pcs/min) | 10~30 |
| Suit product size(mm) | L:800~1500mm;W:100~300mm H:500~1000m;Be customized |
| Suit label size(mm) | L:20-150;W(H):20-100 |
| Machine Size(L*W*H) | 1700*1000*1400(mm) |
| Pack Size(L*W*H) | 1750*1010*1450(mm) |
| Voltage | 220V/50(60)HZ; Be customized |
| Power | 1020W |
| N.W(KG) | 195.0kg |
| G.W(KG) | 360.0kg |
| Label Roll | ID:Ø76mm; OD:≤300mm |

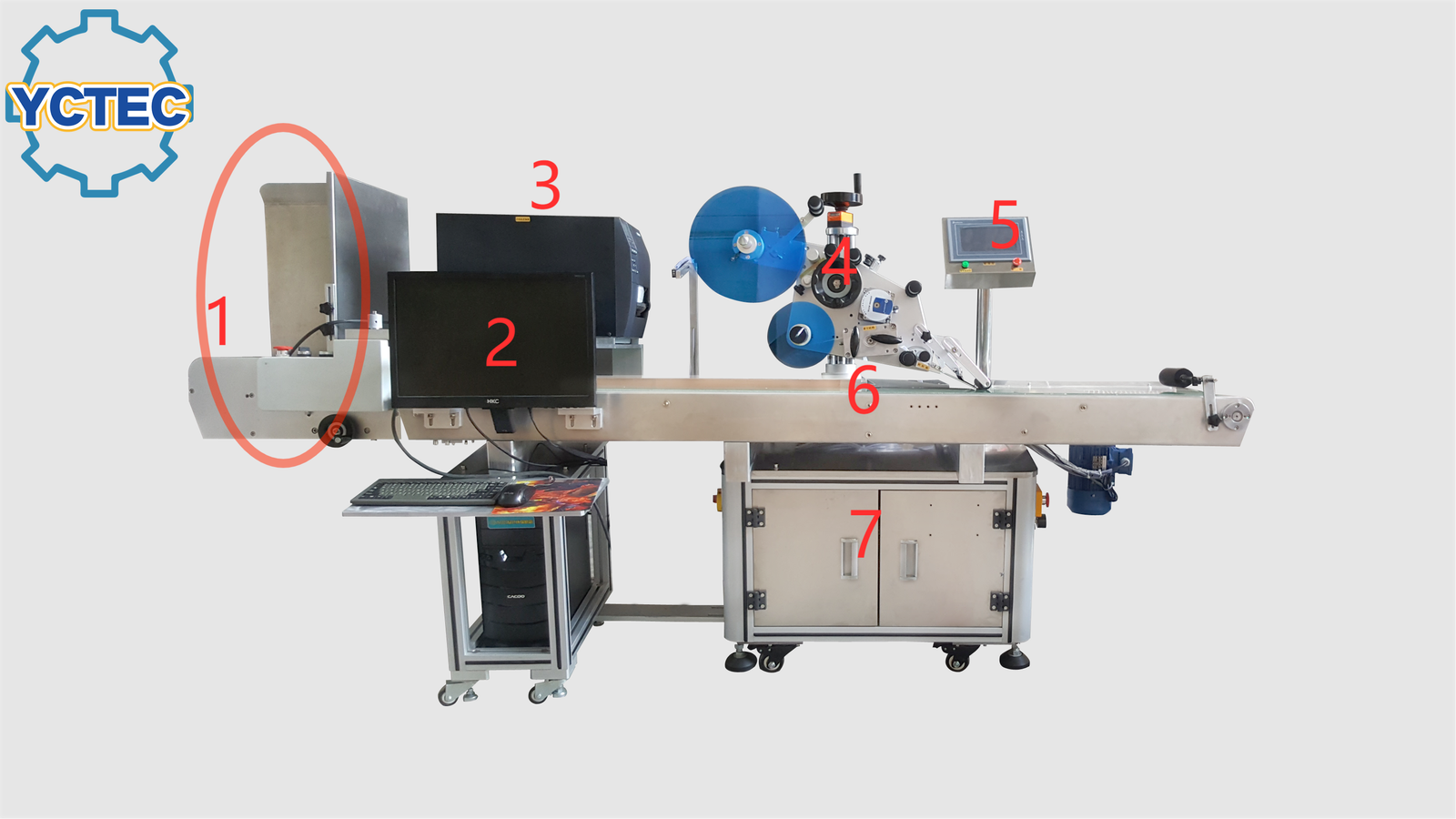

| No. | Structure | Function |
| 1 | Pagination Device | Separate a stack of pouches/cards/...and feed to the conveyor one by one. |
| 2 | Competer | Import the label data to be labeled |
| 3 | printer | printer the label data to be labeled |
| 4 | Labeling Head | Core of the labeler, includes label-winding and driving structure |
| 5 | Touch Screen | Operation and setting parameters |
| 6 | Conveyor | Transmit product |
| 7 | Electric Box | Place electronic configurations |
1 ) Control System: Japan Panasonic control system , with high stability and extremely low failure rate.
2 ) Operation System: Touch screen , directly visual interface easy operation. Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.
3) Detection System: German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .
4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
